DSP8861EV1.0isahighlyintegratedBluetooth3.0+EDRstereo module,designed forhighdatarate,short%rangewirelesscommunication in the2.4GHzISMband.WithISSCBluetoothstackandprofile,the DSP8861EV1.0providesalowpowerandultra%lowcostBluetooth3.0+EDR solutionforwirelessvoice/audioapplications.
Features
- MainChip:ISSCIS1681S
- Bluetooth3.0+EDRcompliant
- Typical+2dBmClass2outputpower
- Receiver Sensitivity: GFSK typical %91dBm, π/4 PSK typical %92dBm,
- 8DPSKtypical%84dBm
- PiconetandScatternetsupport
- HCIUARTinterface
- CVSD,A%law,µ%lawCODECalgorithmsforvoiceapplications
- SBCdecodeforBluetoothaudiostreaming
- Build%inHighperformancestereoaudiocodec
- Cap%less/singleendheadphonedriver
- AudioDAC:94dBSNR
- BuildinMax.350mAHLi%ionbatterycharger
- HSP,HFP,A2DP,AVRCPprofilesupport
- 3Voperatingvoltage
- ROMversion:32KbEEPROM
- 34pinsforDIPmodule,35pinsforSMTmodule(withadditional35thpin
- antennaportforexternalantennaoption)
- Size:15mmx29mm
- Build%inPCBAntenna
- RoHScompliant

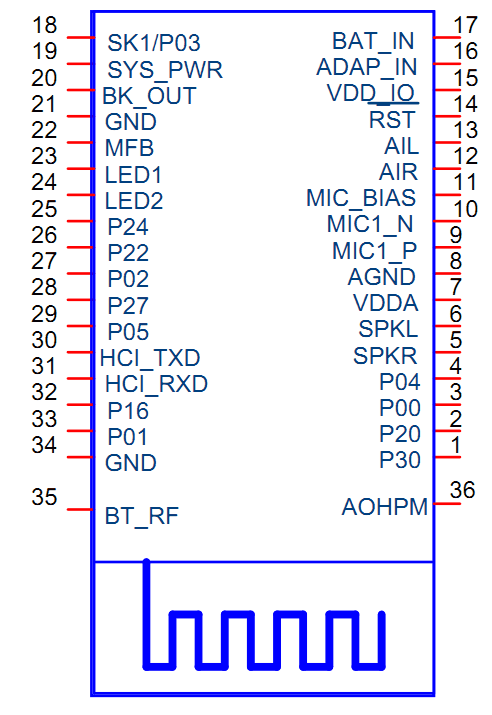

Device Pinout Diagram
